This blog is about using the Advanced Force Main Solution and Gravity Main Attenuation in InfoSewer for better Pump, Force Main, Gravity Main Simulations  Lightning

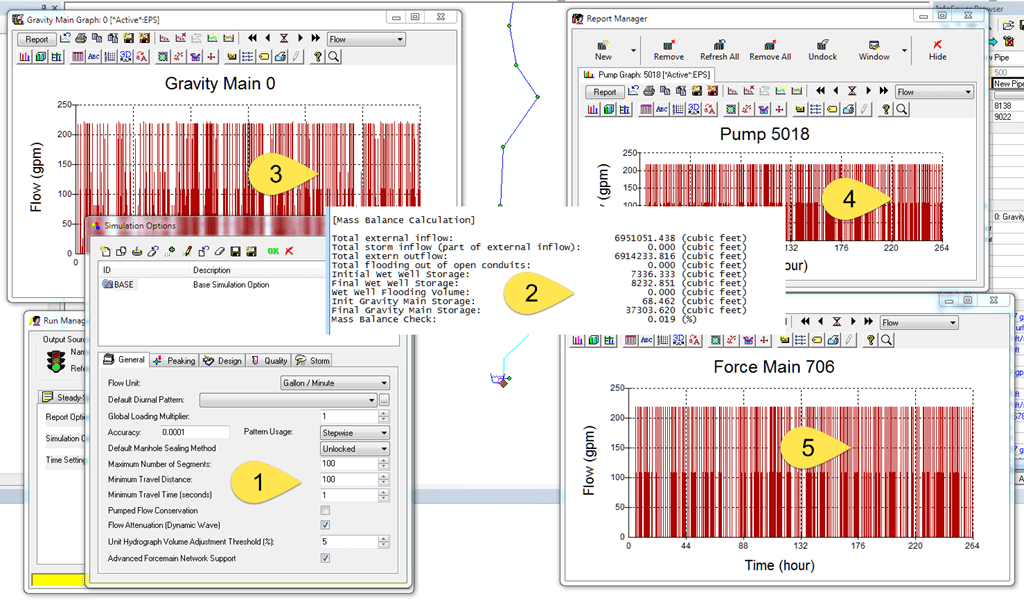

  1. Select Advanced Force Main Solution and Flow Attenuation the Run Manager
  2. The overall Continuity Error will be Better
  3. Gravity mains will be closer to the Force Main Flows
  4. Force Main Flows will be closer to the Pump flows
      Lightning Select Advanced Force Main Solution and Flow Attenuation the Run Manager   Lightning Force Main Flows will be closer to the Pump flows
      Lightning The overall Continuity Error will be Better   Lightning Gravity mains will be closer to the Force Main Flows


By Autodesk Technologist for ICM/SWMM

Autodesk Water Technologist for Storm Sewer and Flood | Expert in ICM InfoWorks ICM SWMM/Ruby | 18 Years at Innovyze/Autodesk | 52 Years with EPASWMM TAC for CIMM.ORG SWMM5+
