How to Use Trace Upstream, Domain Manager and Facility Manager in InfoSewer to Find the CE

By Robert Dickinson / February 14, 2015

InfoSewer and H2OMap sewer do not have table of node continuity errors only an overall continuity error balance.  If you have a continuity error then you can use the process of divide and conquer to find the location of the continuity error.  Start at the Outlets and using the Trace Upstream command, Domain Manager and Facility Manager take out whole sections of the network until you isolate the section of the network with the continuity error  (Figure 1 and Figure 2).

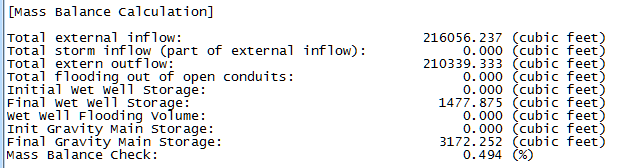

Figure 1. The Mass Balance Calculation in InfoSewer/H2OMap Sewer.

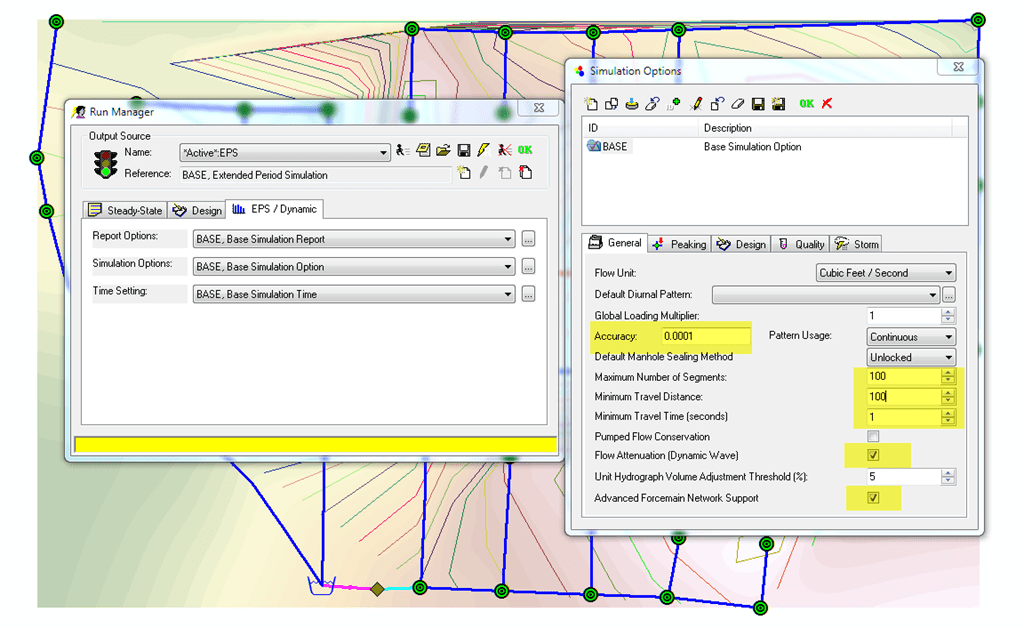

Figure 2.  Control the Continuity Error with the Run Control Options in Run Manager.
Figure 2.  Control the Continuity Error with the Run Control Options in Run Manager.

Here are the steps you can take:

Step 1.   Use Trace Upstream Network to find the and place in a Domain the Upstream Network (Figure 3).

Step 2.   Once the upstream domain is created use the Domain Manager to add in any extra links without nodes (Figure 4)

Step 3.   Make the Domain Inactive using Facility Manger (Figure 5)

Step 4.    Run the network and check the overall continuity error (Figure 6)

Step 5.   Continue and repeat until you isolate the area that is the main source of the Continuity Error (CE).

Figure 3. Trace Upstream Network and Place it in a Domain
Figure 3. Trace Upstream Network and Place it in a Domain
Figure 4.  Use Domain Manager to take out links without nodes
Figure 4.  Use Domain Manager to take out links without nodes
Figure 5.  Use Facility Manager to Make the Domain Inactive
Figure 5.  Use Facility Manager to Make the Domain Inactive
Figure 6. Find and Isolate the Area with the CE.
Figure 6. Find and Isolate the Area with the CE.
