New – Five Infiltration Options Now in InfoSWMM v14 and H2OMap SWMM v14 for Watershed Modeling

Infiltration from the pervious area is a marvelous and from a runoff volume and runoff peak perspective a vital process in modeling the hydrology and ultimately the hydraulics of your Watersheds.  Figure 1 shows the five options available in InfoSWMM and H2OMap SWMM after the version 14 update which was based on the EPA SWMM 5.1.010 release:

Storm cloud Horton

Storm cloud Modified Horton

Storm cloud Green Ampt

Storm cloud Modified Green Ampt

Storm cloud Curve Number

Not only can you have a different Infiltration option per Model Simulation but you can have different options for each scenario and even for individual Subcatchments in a Scenario (Figure 2).  In #InfoSWMM and H2OMap SWMM the Soil DB table (Figure 3) shows the individual parameters that apply to Horton, Green Ampt and Curve Number infiltration. The Modified Horton and Green Ampt have the same parameters as the Horton and Green Ampt Soil Types.  The Soil Coverage is specified in the Subcatchment DB Table or individually in the Subcatchment Attribute Browser (AB) as shown in Figure 4.  You can also see the infiltration losses for either multiple Subcatchments or for one Subcatchment across many scenarios using the Advanced Reference Graphics Analysis in Innovyze’s InfoSWMM and H2OMap SWMM (Figure 5).

SNAGHTML9c87283

Figure 1. Five Infiltration Options in the Run Manager

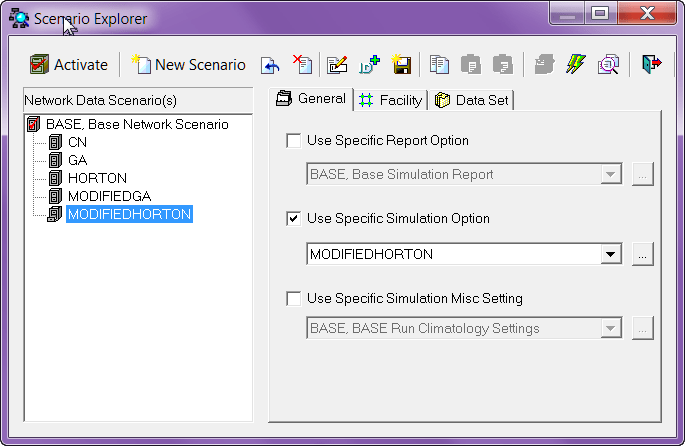

SNAGHTML9d0088b

Figure 2. The Marvelous Scenario Explorer in Innovyze Arc GIS products allows you to customize the Infiltration Options per Scenario and Dataset.

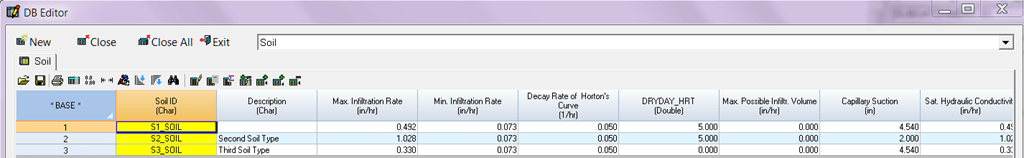

SNAGHTMLd4190fe

Figure 3. A key to getting good infiltration results is defining the infiltration parameters in the Soil DB Table.

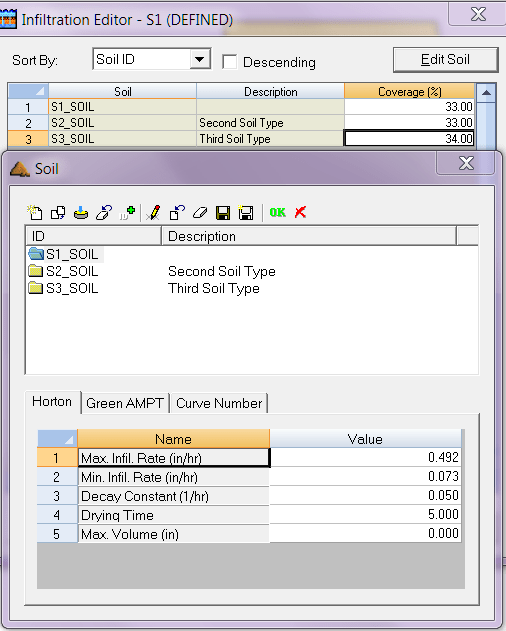

SNAGHTMLd42bbd5

Figure 4. You can also define both your Soil parameters and Soil Coverage for each Subcatchment in the Attribute Browser.

SNAGHTML9d25794

Figure 5. The feature rich Output Report Manager allows complete customization of the graphs using other scenarios, calibration data and other other output elements.
