Steps for Running RDII Analyst in H2OMap SWMM


Steps for Running RDII Analyst in H2OMap SWMM

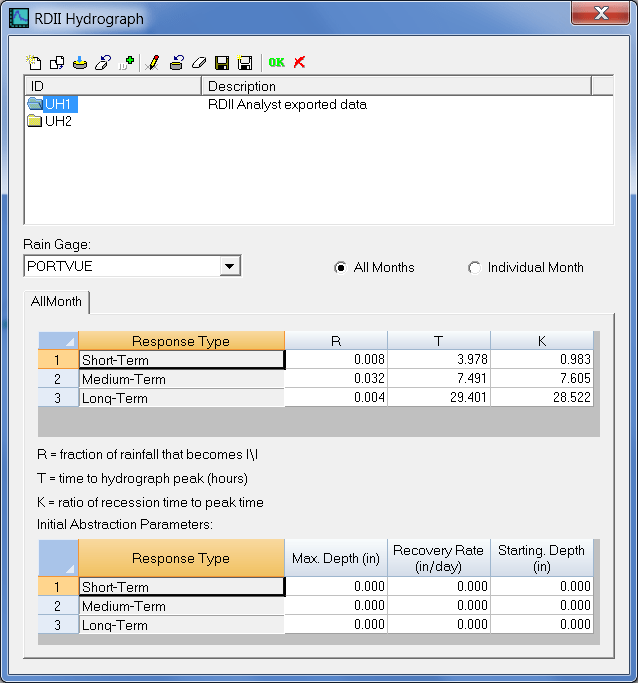

Step 1. Create the RTK UH in the H2OMap SWMM Attribute Browser (AB)

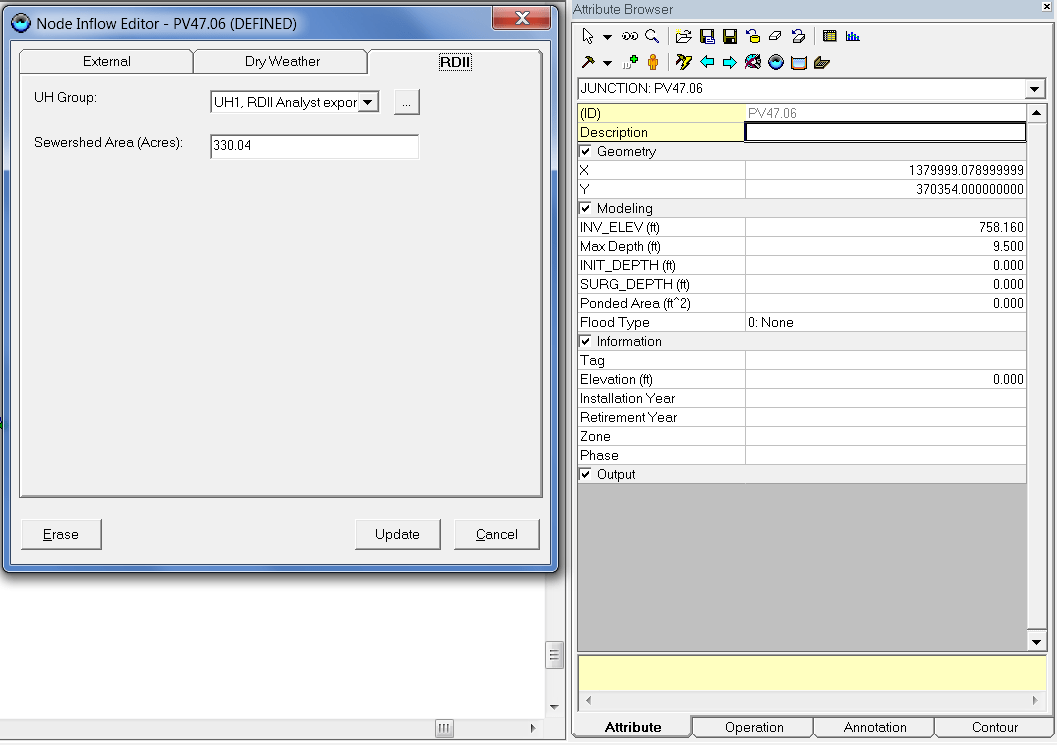

Step 2. Assign the RTK UH to a node (you need one node at least to Run RDII Analyst).

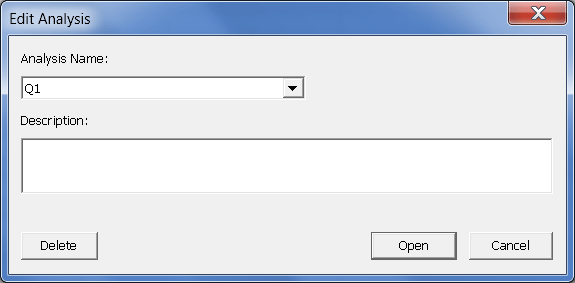

Step 3. Open up RDII Analyst and Set up the Node for the Analysis

Step 4. Select a Node

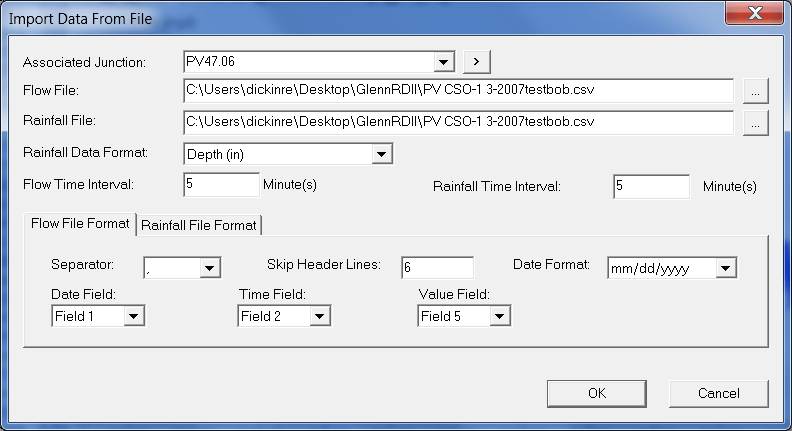

Step 5. Define the Flow Data

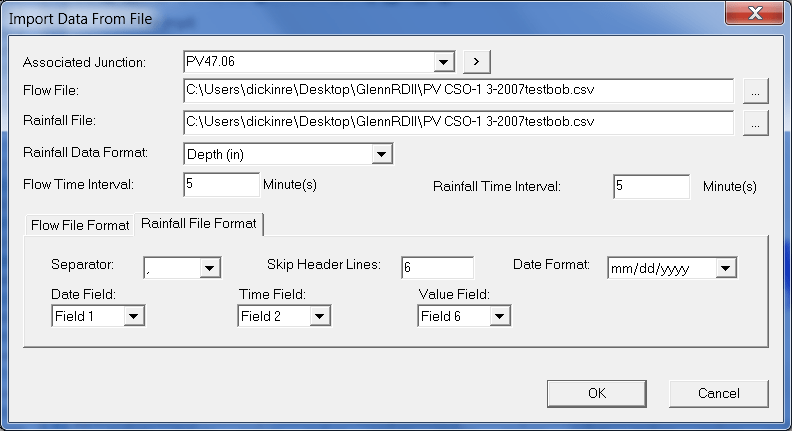

Step 6. Define the Rainfall Data

Step 7. Calculate the DWF and GW flow

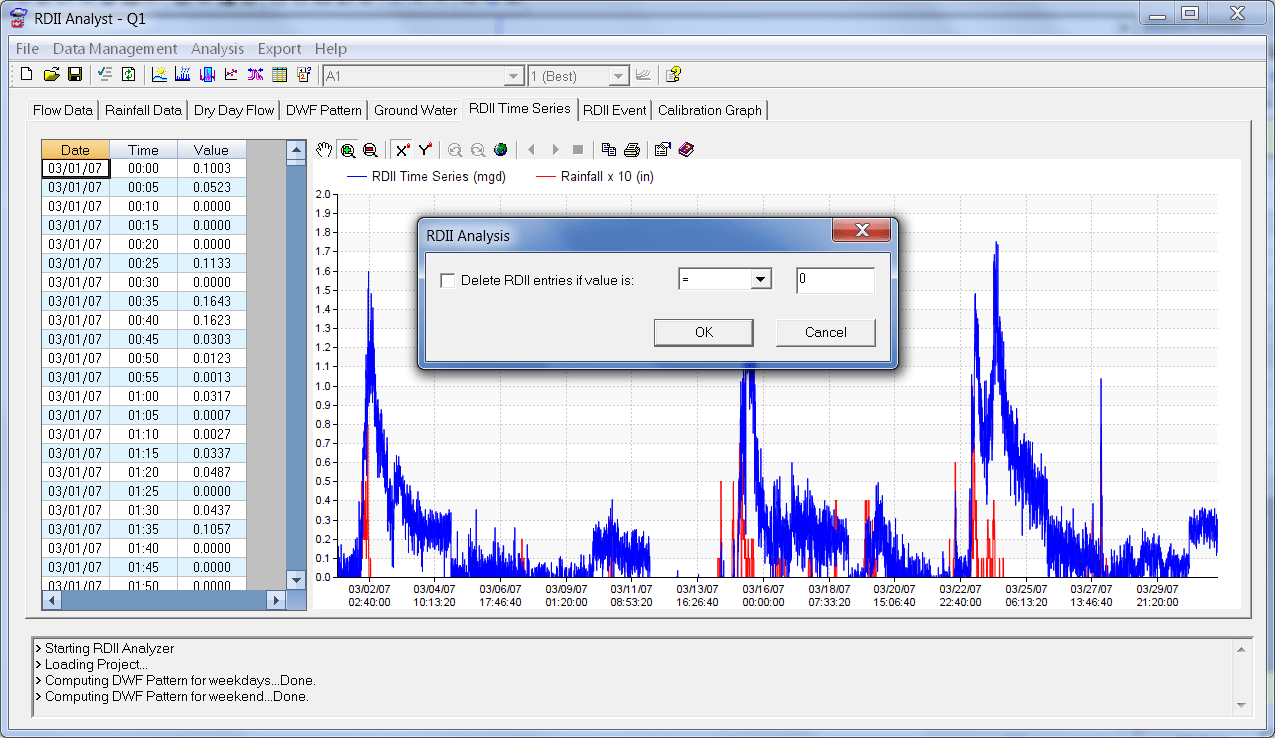

Step 8. Calculate the Wet Weather flow – Flow minus Dry Weather Flow

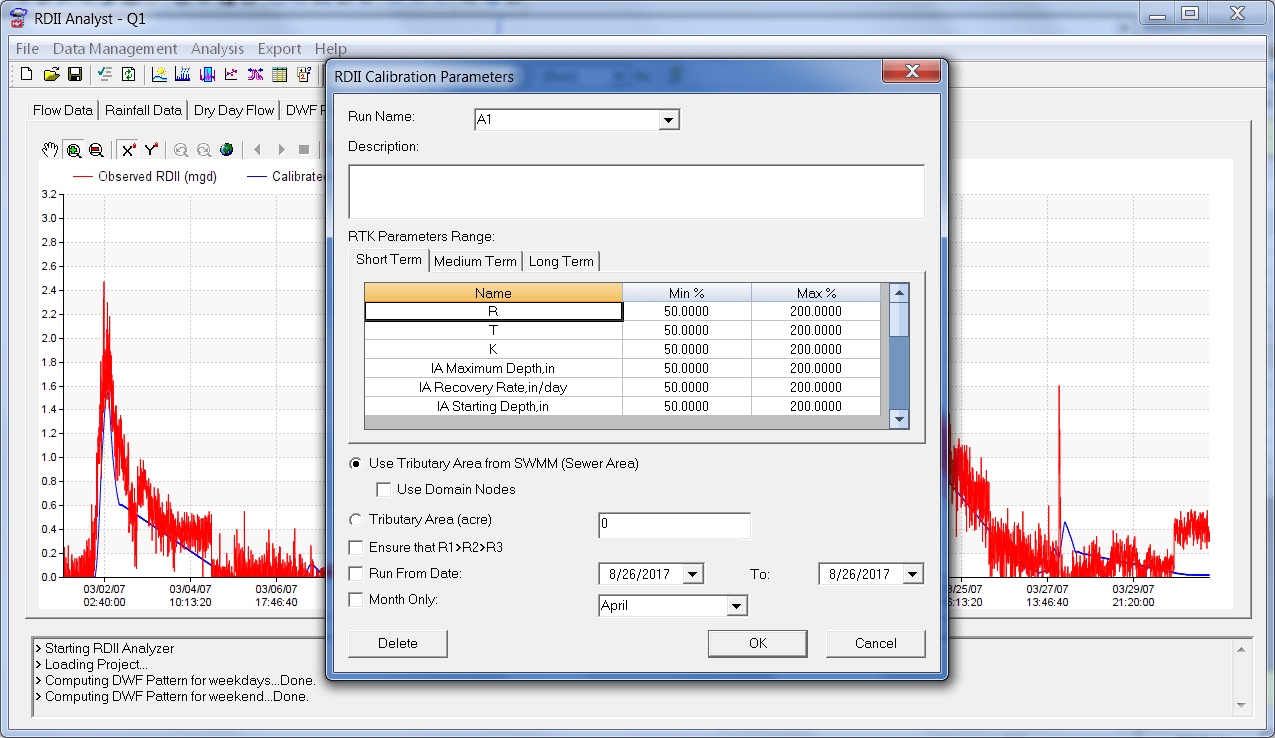

Step 9. Set up the RDII GA Run

Step 10. The RDII Calibration Result

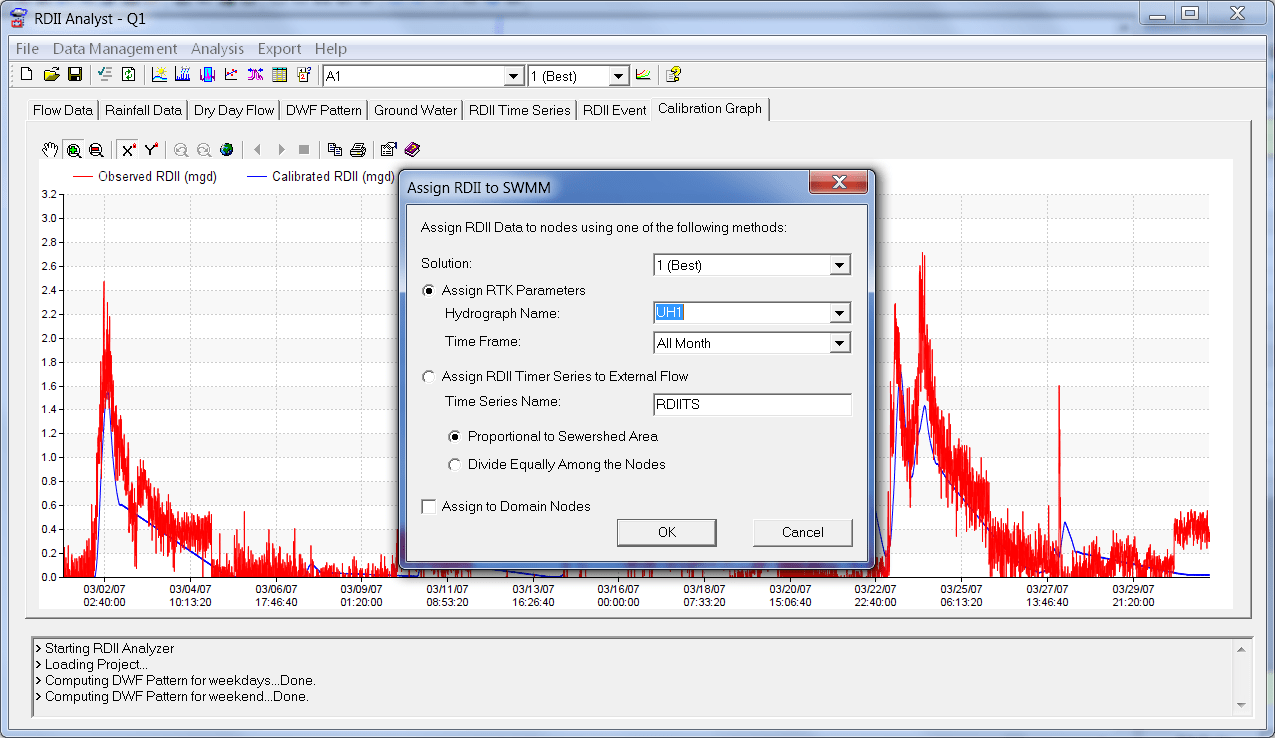

Step 11. Export RTK parameters back to H2Omap SWMM
