The Connections between Innovyze Products and SWMM5

The Connections between Innovyze Products and SWMM5

The relationship between the Various InfoSWMM, H2OMap SWMM and InfoSWMM SA Versions and SWMM5

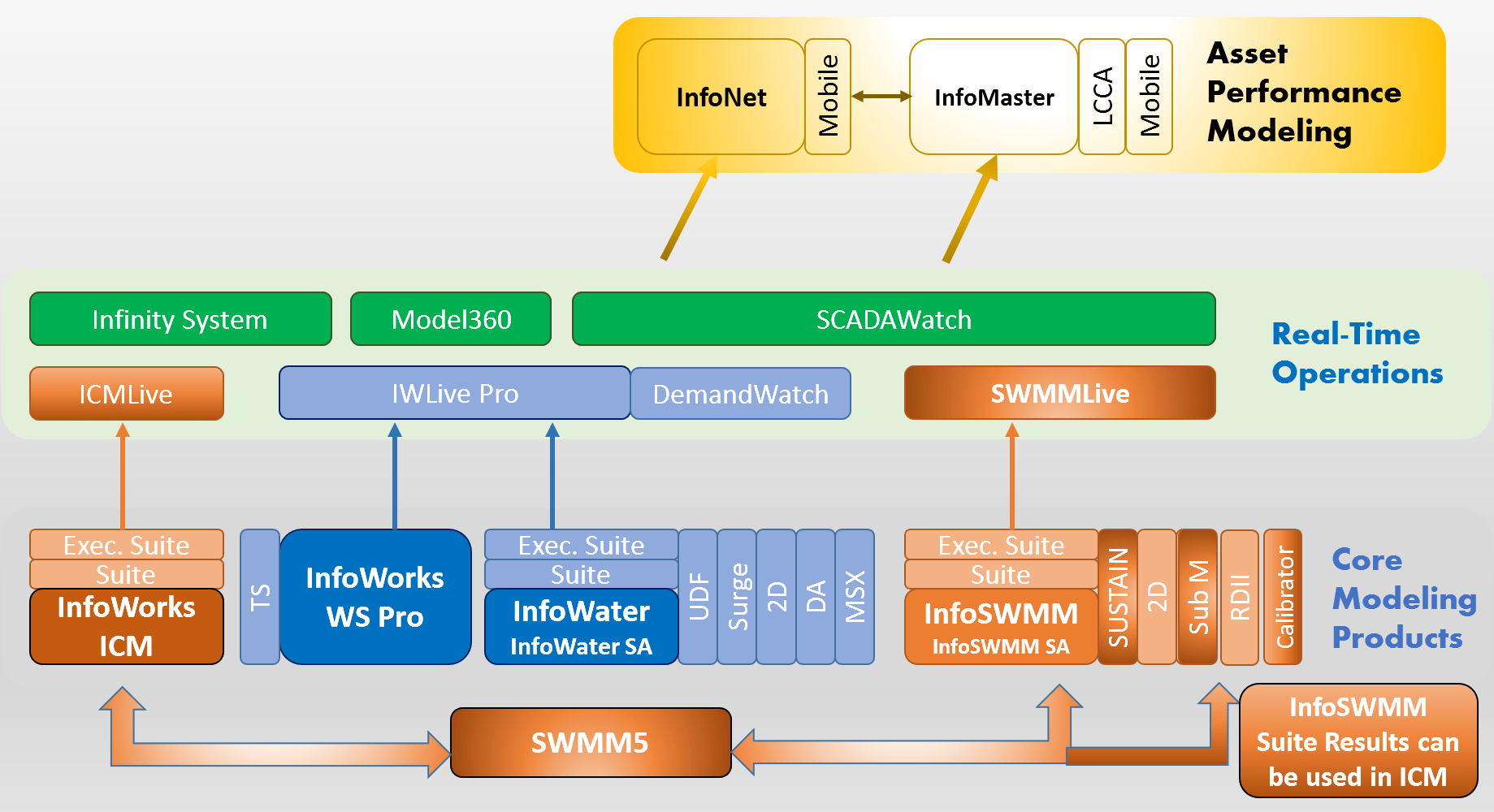

The relationship between ICM, ICM SE, InfoSWMM, InfoSewer, H2OMap Sewer, and SWMM5. InfoSWMM can import , SWMM5, H2OMap Sewer, InfoSewer can export to ICM_SE or ICM using the SWMM5 data format. Innovyze products that either run the current SWMM5 engine or imports and exports the current SWMM5 data files are (click to see the associated product page in each row in the following table for each product or go to www.innovyze.com for all Innovyze products.

InfoSWMM Suite based on EPA SWMM 5.1.012 GA generated RTK, SWMM5 Hydrology, SWMM5 Infiltration, SWMM5 RDII, SWMM5 SuDS/LID parameters can also be used in ICM and ICM SE
InfoSWMM Sustain based on EPA SWMM 5.1.012 Optimized LID Controls can also be used with ICM SuDS
InfoSWMM SFEM based on EPA SWMM 5.1.012 generated DWF can be used in ICM SE and ICM
InfoSWMM 2D based on EPA SWMM 5.1.012
InfoSWMM RDII Analyst based on EPA SWMM 5.1.012 GA generated RTK parameters can also be used with ICM and ICM SE RDII
H2OMap SWMM Suite based on EPA SWMM 5.1.012 GA generated RTK, SWMM5 Hydrology, SWMM5 Infiltration, SWMM5 RDII, SWMM 5 SuDS/LID parameters can also be used in ICM and ICM SE
RDII Analyst based on EPA SWMM 5.1.012 GA generated RTK parameters can also be used with ICM and ICM SE RDII
SWMMLive based on EPA SWMM 5.1.012 has the ICM LIve GUI with the InfoSWMM Engine
InfoWorks ICM Imports and exports EPA SWMM 5.1.012 has SWMM5 Hydrology, SWMM5 Infiltration, SWMM5 RDII, SWMM 5 SuDS/LID
InfoWorks ICM SE Imports and exports EPA SWMM 5.1.012 has SWMM5 Hydrology, SWMM5 Infiltration, SWMM5 RDII, SWMM 5 SuDS/LID

How InfoSWMM and , InfoSWMM SA import and export SWMM 5 files

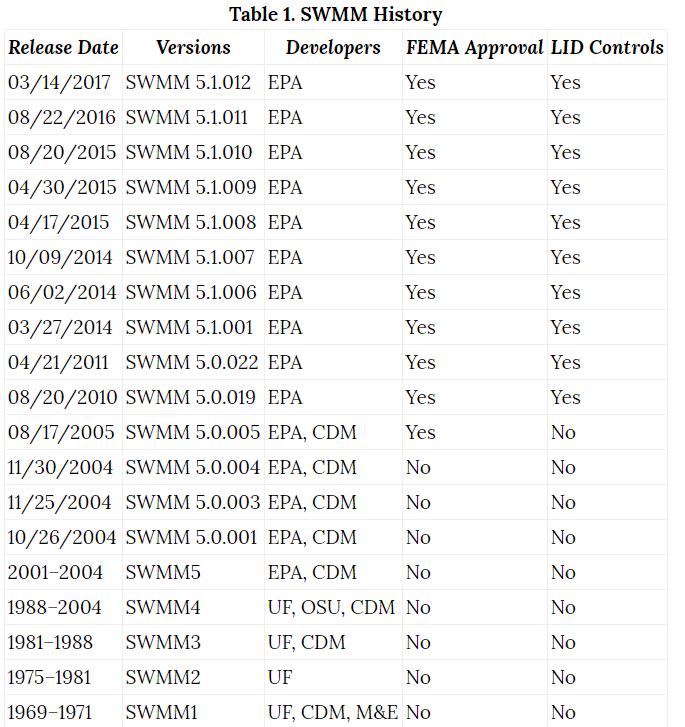

The history of the Low Impact Development (LID) features and FEMA approval for SWMM 5 from Wikipedia





SWMM5 and InfoSewer

InfoSewer and H2OMap Sewer do not import SWMM 5 but there is a good connection between InfoSewer and InfoSWMM and then via InfoSWMM Export to SWMM 5

SWMM5 Components in InfoWorks ICM



InfoSWMM SA Import Options (in addition to SWMM5 Import)
