LID Output Tabular Reports (Time Series Report) for InfoSWMM and InfoSWMM Sustain


LID Output Tabular Reports (Time Series Report) for InfoSWMM and InfoSWMM Sustain

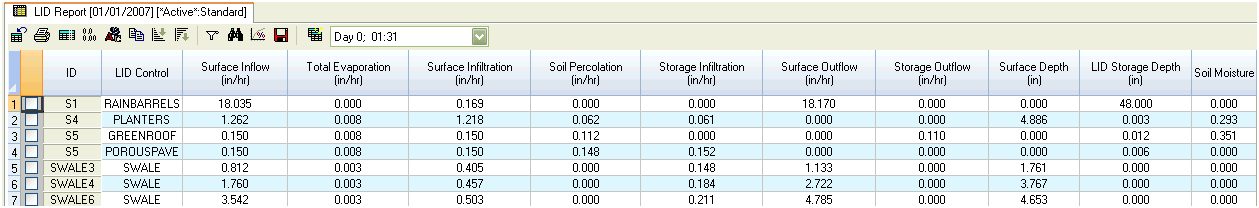

The LID Report in Output Report Manager lists the LID pathway values for individual timesteps for each LID Control on every Subcatchment for these parameters:

1. Surface Inflow normalized to the area of the LID Control in units of inches/hour or millimeters/hour (instantaneous),

2. Evaporation normalized to the area of the LID Control in units of inches/hour or millimeters/hour (instantaneous),

3. Surface Infiltration normalized to the area of the LID Control in units of inches/hour or millimeters/hour (instantaneous),

4. Percolation through pavement layer

5. Soil Percolation through the Soil Layer normalized to the area of the LID Control in units of inches/hour or millimeters/hour (instantaneous),

6. Storage Infiltration normalized to the area of the LID Control in units of inches/hour or millimeters/hour (instantaneous),

7. Surface Outflow normalized to the area of the LID Control in units of inches/hour or millimeters/hour (instantaneous),

8. Storage Outflow normalized to the area of the LID Control in units of inches/hour or millimeters/hour (instantaneous),

9. Surface Depth in inches or millimeters,

10. Soil Moisture of Pavement Layer (fraction)

11. Soil Moisture (fraction)

12. LID Storage Depth in inches or millimeters
