Flow Classification Summary Report for Links in InfoSWMM and InfoSWMM SA


Flow Classification Summary Report for Links in InfoSWMM and InfoSWMM SA

The flow classification summary report is available only if the flow routing option used is dynamic wave. This report summarizes the flow regimes experienced by all or selected conduits in the system.

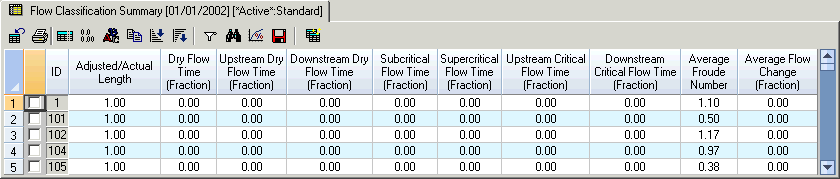

The following variables are displayed on the flow classification summary report for all or selected conduits depending on the report scope ( i.e., show complete report/graph, select elements, use Domain, use selection set, use provided element ID(s)) chosen on the Output Report and Graph dialog box. The summary is provided for the entire reporting length specified in the simulation options – dates tab.

Description of buttons and fields in the report.

BUTTON NAME DESCRIPTION
Refresh Report
Print Report
Format Report
Format Column
Change Font
Copy
Sort Ascending
Sort Descending
Filtering
Find
Frequency Graph Click here to learn more.
Save Selection
Compare Report
Report Time Step
ID Conduit node identifier
Adjusted/Actual Length If the Conduit Lengthening option is used during a dynamic wave simulation, the ratio of adjusted to actual length is reported.
Dry Flow Time Total duration of time the entire conduit length was dry (i.e. conveyed zero flow)
Upstream Dry Flow Time Total duration of time the upstream end of the conduit remained dry
Downstream Dry Flow Time Total duration of time the downstream end of the conduit remained dry
Subcritical Flow Time Total duration of time the flow regime in the conduit was under subcritical condition
Supercritical Flow Time Total duration of time the flow regime in the conduit was under supercritical condition
Upstream Critical Flow Time Total duration of time the flow regime at the inlet end of the conduit remained under critical condition
Downstream Critical Flow Time Total duration of time the flow regime at the outlet end of the conduit remained under critical condition
Average Froude Number The average Froude Number, averaged across the simulation duration, maintained by the conduit
Average Flow Change Average change in flow experienced by the conduit
