Step 9: Export Results to InfoSWMMand InfoSWMM SA
In this section, you will export the hourly DWF patterns created for weekdays and weekend, the groundwater inflow time series and the RTK parameters to InfoSWMM and InfoSWMM SA. The exported data would be assigned to the nodes that contribute flow to … Read the rest
Step 8. Calibrate the RTK Hydrograph Parameters
Automated calibration is another powerful tool that RDII Analyst offers. The calibration tool identifies optimal parameters of the RTK hydrograph to match the RDII flow simulated by InfoSWMM H2OMAP SWMM with the RDII time series identified by RDII Analyst using the decomposition process … Read the rest
Step 7. Determine RDII Events
The RDII time series can be further analyzed to determine RDII events and to summarize each event.
1. Click the (
) button from the toolbar, or from the menu Analysis -> RDII Analyst -> Event Identification. Enter the parameter values as shown below.… Read the rest
Step 6. Determine the RDII Flow Component
RDII flow would be determined by subtracting the DWF and the groundwater flow components identified by the RDII Analyst from the corrected flow monitoring data.
1. To determine the RDII time series, click the (
) button on the toolbar, or engage the … Read the rest
Step 5. Determine the Dry Days, Groundwater Flow and DWF Patterns
To decompose the flow monitoring data into dry weather flows and wet weather flows, RDII Analyst first identifies the dry days based on user specified criteria.
1. Launch the DWF Extraction dialog by clicking (
) from the toolbar … Read the rest
Step 4/3. Specify Flow Monitoring Data and Rainfall Data
1. Create a new analysis by clicking the New button (
) from the toolbar or the New Menu command
Doing this will launch the New Analysis dialog editor:

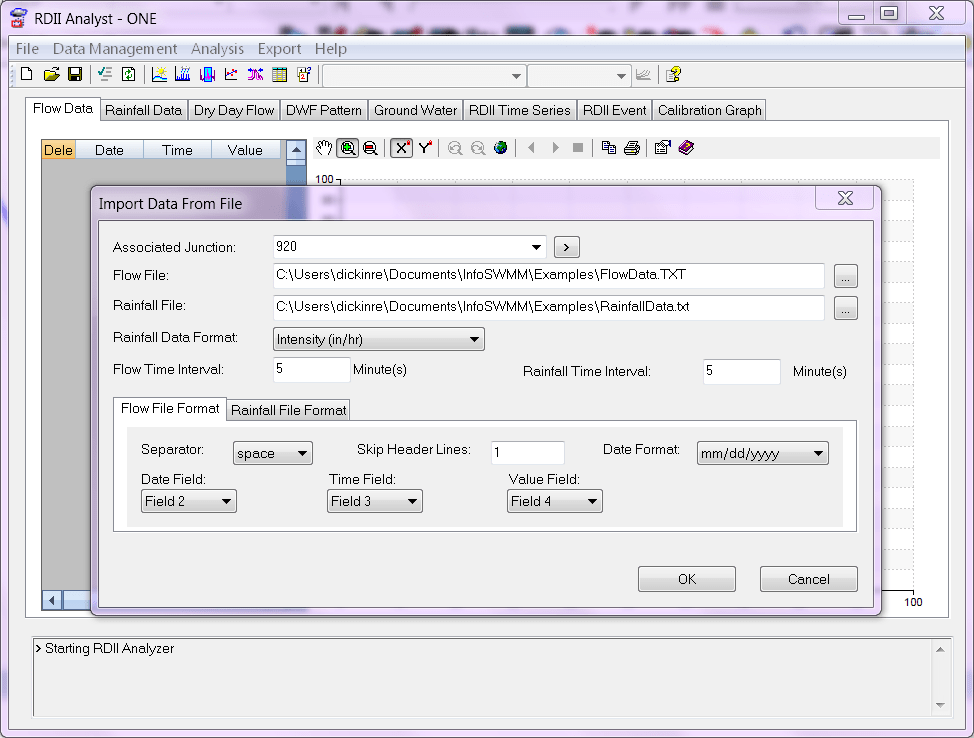

2. Import the flow data

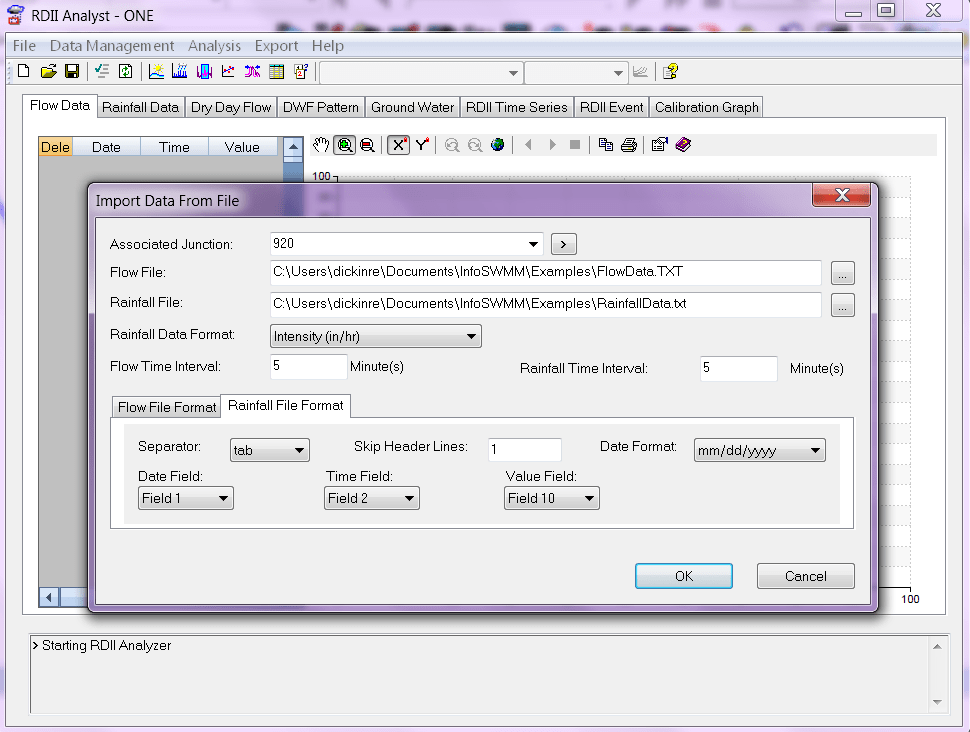

3. Import the rainfall data
FIle links … Read the rest
Step 3. Specify Flow Monitoring Data and Rainfall Data
1. Create a new analysis by clicking the New button (
) from the toolbar or the New Menu command
Doing this will launch the New Analysis dialog editor:
File links for Rainfall and Flow
C:UsersPublicDocumentsInfoSWMMExamplesFlowData.TXT
C:UsersPublicDocumentsInfoSWMMExamplesRainfallData.txt
The top of the … Read the rest
Step 2. Initialize RDII Analyst
1. Initialize RDII Analyst by selecting RDII Analysis from the InfoSWMM or InfoSWMM SA Applications menu:
2. You can also make a custom Icon for RDII Analyst using the Customize Menu command of Arc Map (InfoSWMM Only) and then use that Icon to open RDII … Read the rest
Step 1. Open the Sample RDII Analyst Project
All of the @innovzye sample files are in the Public Documents/ Name of Software / Examples folder
The file and directory you need are
C:UsersPublicDocumentsH2OMAP SWMMExamples
SampleRDIIANALYST.HSM
for H2OMap SWMM (H2OMap SWMM files end in .HSM)
InfoSWMM (InfoSWMM file end in MXD … Read the rest
Rainfall and Flow Example Format
The format of the rainfall and flow files used in this tutorial. The rainfall file has tabs, whereas the flow file is space delimited.
Rainfall Format
File links for Rainfall and Flow
C:UsersPublicDocumentsInfoSWMMExamplesFlowData.TXT
C:UsersPublicDocumentsInfoSWMMExamplesRainfallData.txt
The top of the Flow Data File looks like
SITE DATE … Read the rest
